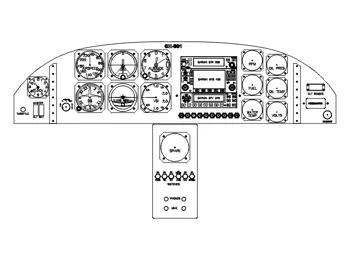

CH-601 panel CAD drawing

Introducing the CH-601 panel, designed specifically for Zenair aircraft enthusiasts. This CAD drawing for the Zenair CH601 panel allows you to create your own replacement or flight simulator panel with ease. The drawing includes cutout drawings for a full "6 Pack", radio stack, and auxiliary openings, providing you with the flexibility to customize your panel to your exact specifications.

The panel drawing is available in DXF format, compatible with any commercially available CAD drawing program that can import a DXF format file. Additionally, a full-size JPG or PNG file is included, which can be printed out and used as a mounting or drilling template if you prefer to build your panel from sheet stock aluminum, carbon fiber, or any other material of your choice.

Upon purchase, the panel file will be sent to the email address provided, ensuring a seamless and efficient delivery process. Should you wish to modify any panel to suit your specific requirements, our team is readily available to collaborate with you and create a custom panel tailored to your needs. We are dedicated to providing personalized solutions to enhance your experience.

It's important to note that no refunds can be given on digital files. However, we are more than happy to assist you in modifying purchased files to meet your requirements after you have received them. Once the file has been downloaded or emailed, it becomes the property of the purchaser. Each file is digitally marked to ensure authenticity and ownership.

Elevate your Zenair aircraft experience with the CH-601 panel, and take control of your cockpit customization like never before. Get your panel drawing today and embark on a journey of personalized aviation excellence!
