King Air panel CAD drawing

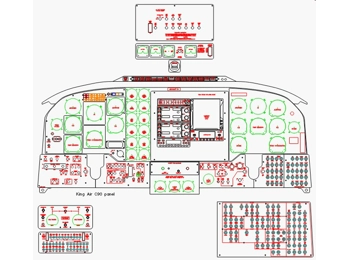

CAD drawing for Beechcraft King Air A-90 to C-90 style panel.
Make your own home flight simulator* panel with this amazingly detailed CAD drawing . Includes all cutout drawings for all 2 1/4" and 3 1/8" "steam gauge" openings, radio stack, all switches, breakers and auxiliary controls on a typical King Air.

Panel drawing is in DXF format to be used with any commercially available CAD drawing program that can import a DXF format file.
Also included is a full size JPG or PNG file that can be printed out and used as a mounting or drilling template if you want to build your panel from sheet plywood, stock aluminum, carbon fiber, or other material.

Panel file will be sent to the email address provided on you order.

If you want to modify any panel to suit your specific requirements, please contact us and we would be happy to work with you to create a custom panel.

We are sorry, but no refunds can be given on digital files.
We are however happy to work with you to modify purchased files to your requirements after you receive them.
Once the file has been downloaded or emailed it becomes the property of the purchaser. Each file is digitally marked to the original purchaser.

*This panel CAD drawing is not suitable for use as a replacement panel drawng on a real aircraft due to being a "generic" overview of a non specific King Air design. All dimentions are true size and measured from actual aircraft.
