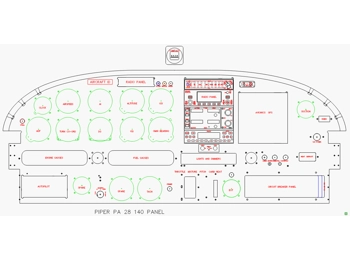

CAD drawing for Piper Cherokee / Archer 140 panel.
Make your own replacement or flight simulator panel.
Includes cutout drawings for all 2 1/4" and 3 1/8" "steam gauge" openings.
Panel drawing is in DXF format to be used with any commercially available CAD drawing program that can import a DXF format file.
Also included is a full size JPG or PNG file that can be printed out and used as a mounting or drilling template if you want to build your panel from sheet stock aluminum, carbon fibre, or other material.
Panel file will be sent to the email address provided on you order.
If you want to modify any panel to suit your specific requirements, please contact us and we would be happy to work with you to create a custom panel.
We are sorry, but no refunds can be given on digital files.
We are however happy to work with you to modify purchased files to your requirements after you receive them.
Once the file has been downloaded or emailed it becomes the property of the purchaser. Each file is digitally marked to the original purchaser.
