Piper PILOT 100 panel

AVAILABLE NOW!

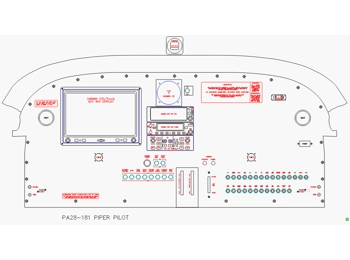

Piper Pilot 100i (PA28-181) CAD panel drawing

The Piper Pilot panel gives a simple clean look with all the features of a much more sophisticated aircraft. The Garmin suite of G3x Touch display, G5 backup flight display and radio stack featuring the Garmin GNX 375 GPS, GTR 225 com, and GFC autopilot show how simplicity and value define the Pilot 100i
The tried-and-true PA28 airframe and reliable Lycoming engine meet state-of-the-art Garmin G3X-Touch avionics for a trustworthy training aircraft that can be used to train all levels and all certificates.
Now you can build your own fligth simulator panel featuring all of the great innovations of the newest release from Piper in their light single line of aircraft.

Includes cutout placement for all displays and radio stack openings, as well as breakers, switches, Hobbs meter, ELT remote, and other panel openings.
Panel drawings are sent in DXF, AI, JPG, and SVG format to be used with any commercially available CAD drawing program that can import these file formats.

Also included is a full size PDF file if you want to build your panel from sheet stock aluminum, carbon fibre, or other material, that can be printed out and used as a mounting or drilling template,
or print it out for a training poster at your flight center or club.

Files will be sent to the email address provided on you order.

If you want to modify any panel to suit your specific requirements, please contact us and we would be happy to work with you to create a custom panel.

We are sorry, but no refunds can be given on digital files.
We are however happy to work with you to modify purchased files to your requirements after you receive them.
Once the file has been downloaded or emailed it becomes the property of the purchaser. Each file is digitally marked to the original purchaser.
